Television audio · Enclosed speakers
Compact speaker enclosures and bass-tube formats for television audio. Compare dimensions, impedance and power handling to find the right fit for your product.
Television audio · Enclosed speakers
Range overview

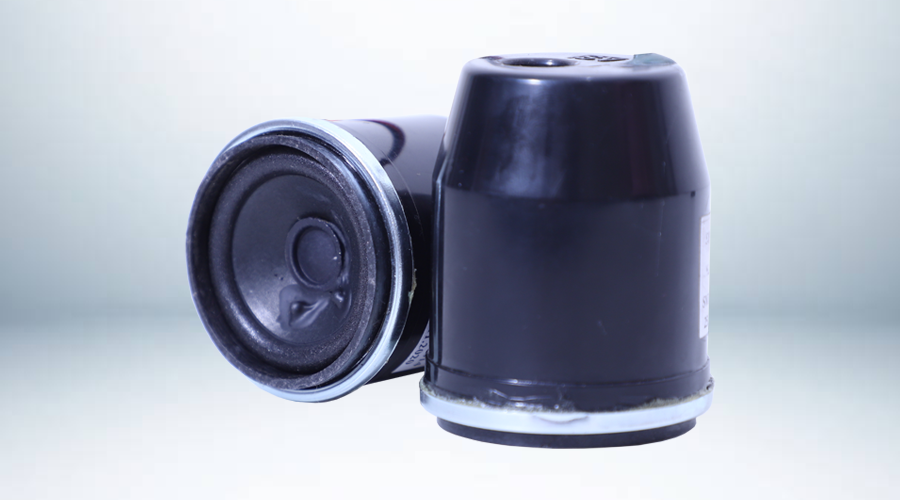

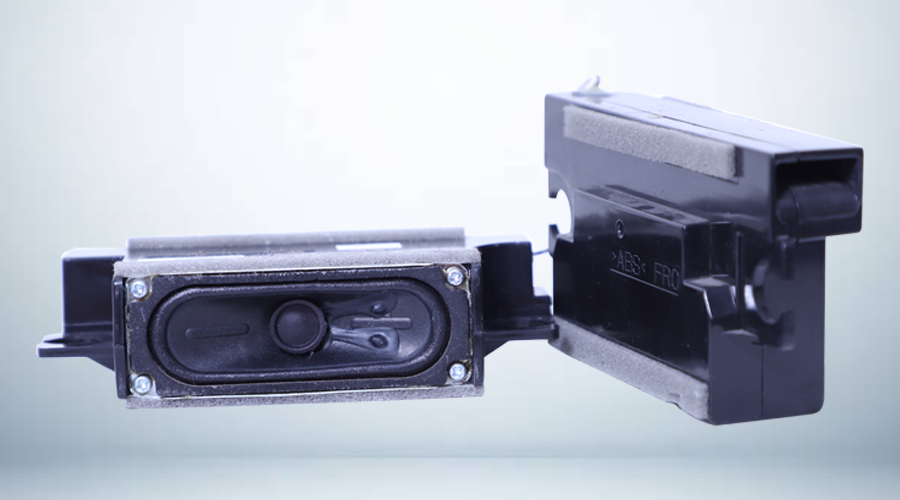

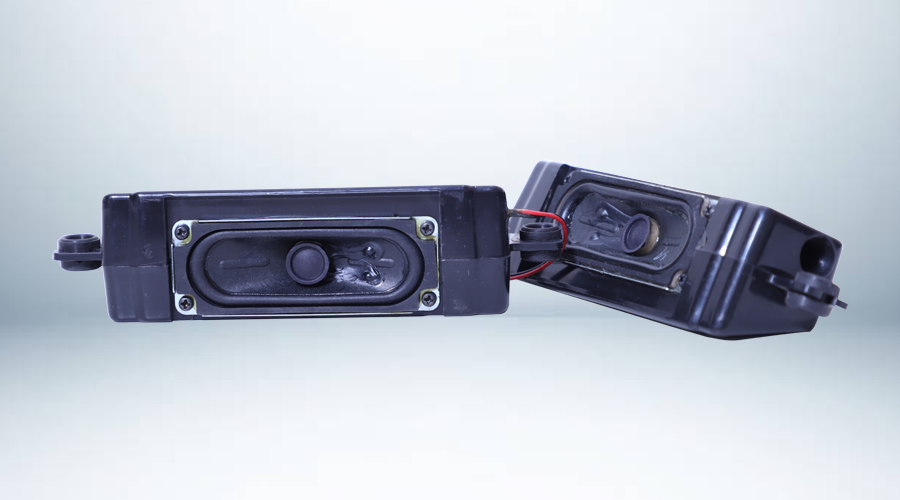

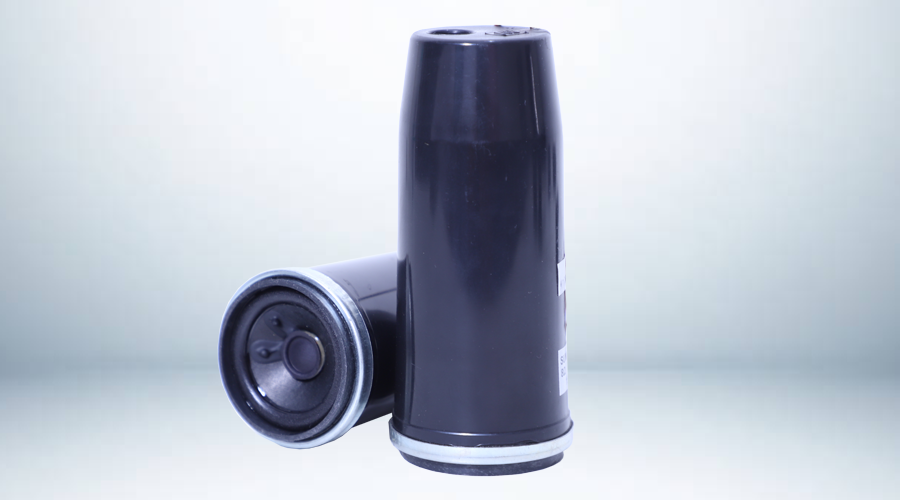

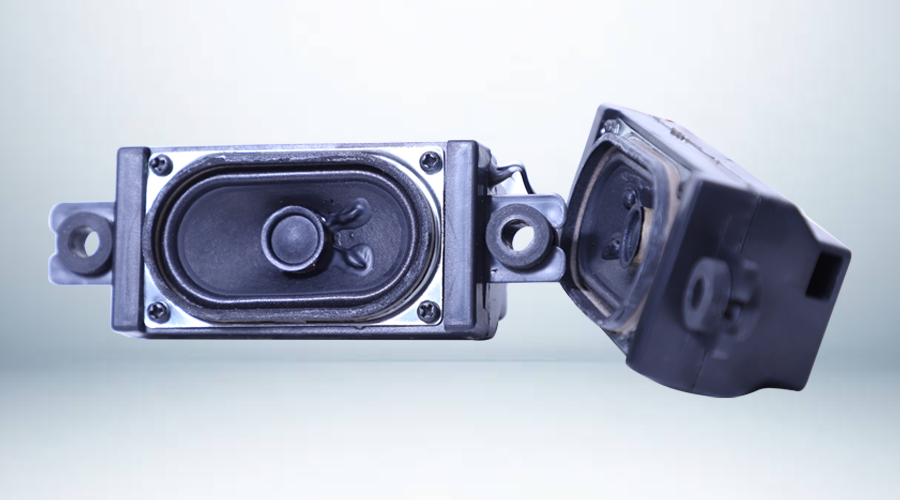

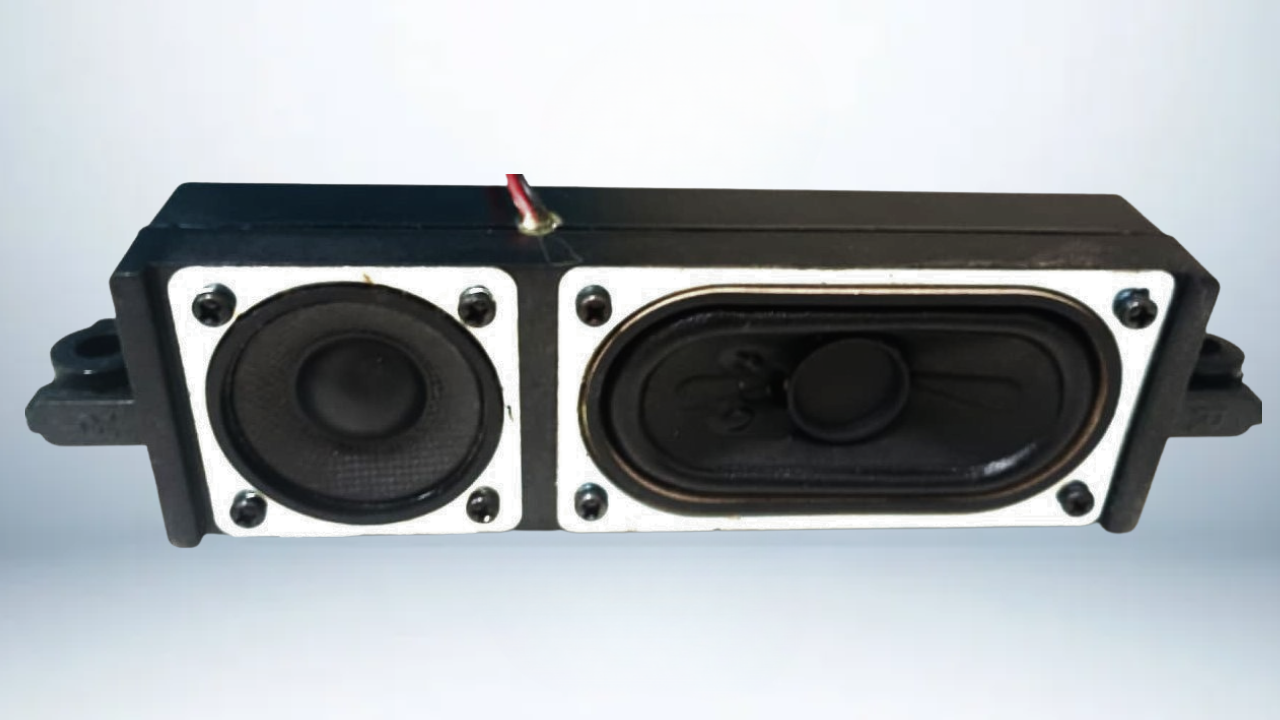

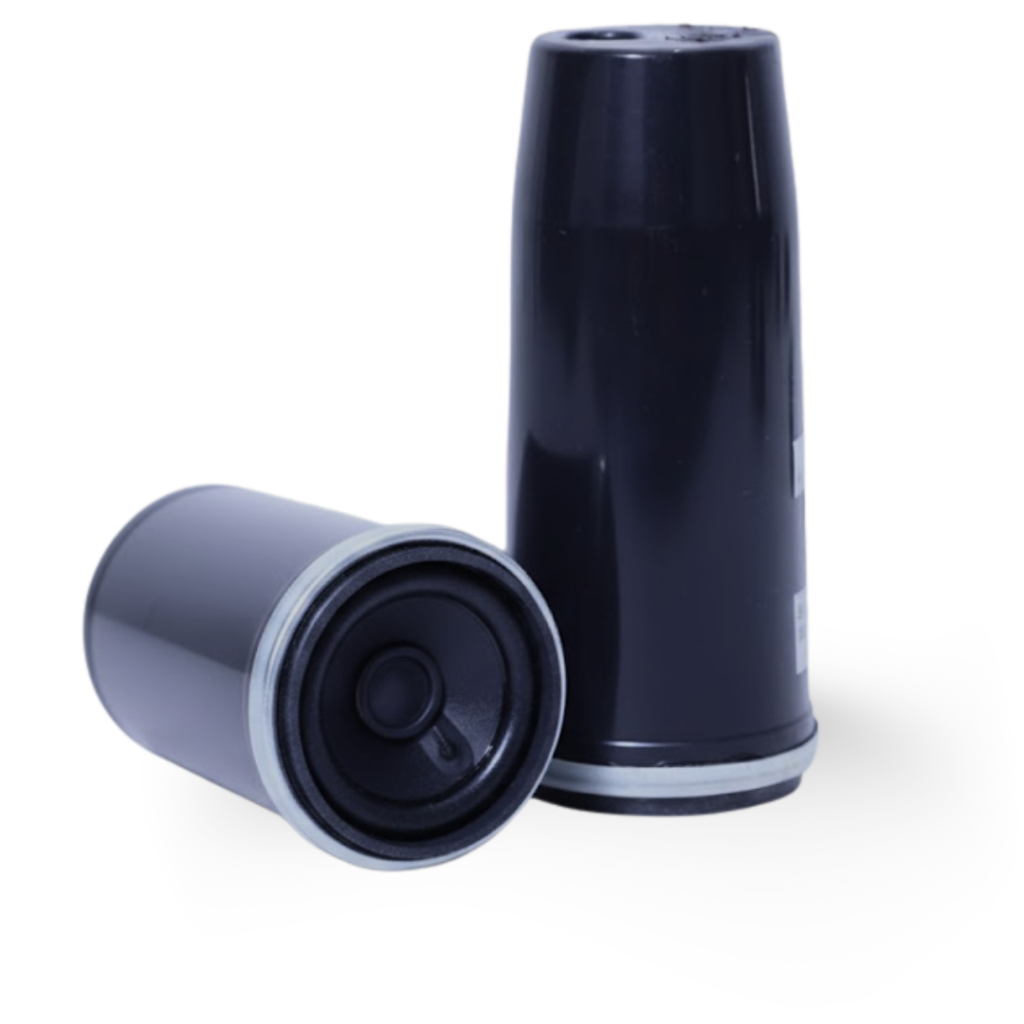

Explore Sunvoice’s LED box speaker range, including rectangular enclosures and bass-tube formats. Compare dimensions, impedance and power-handling specifications to identify the right option for your application.
Use this comparison alongside the full specifications below when selecting a speaker for your application.
Comparison of the published nominal-power specifications. Numbers in brackets match the specification cards below.
Specification 01
| Nominal Impedance | 6 Ω / 8 Ω |
|---|---|
| Nominal Power Handling | 12 W |
| Max Power Handling | 15 W |
| SPL Level | 82 dB |
| Frequency Range | 20 Hz to 20 kHz |
Specification 02
| Nominal Impedance | 6 Ω / 8 Ω |
|---|---|
| Nominal Power Handling | 10 W |
| Max Power Handling | 14 W |
| SPL Level | 80 dB |
| Frequency Range | 20 Hz to 20 kHz |
Specification 03
| Nominal Impedance | 6 Ω / 8 Ω |
|---|---|
| Nominal Power Handling | 10 W |
| Max Power Handling | 14 W |
| SPL Level | 78 dB |
| Frequency Range | 20 Hz to 20 kHz |
Specification 04
| Nominal Impedance | 6 Ω / 8 Ω |
|---|---|
| Nominal Power Handling | 10 W |
| Max Power Handling | 12 W |
| SPL Level | 76 dB |
| Frequency Range | 20 Hz to 20 kHz |
Specification 05
| Nominal Impedance | 6 Ω / 8 Ω |
|---|---|
| Nominal Power Handling | 10 W |
| Max Power Handling | 12 W |
| SPL Level | 88 dB |
| Frequency Range | 20 Hz to 20 kHz |
Specification 06
| Nominal Impedance | 6 Ω / 8 Ω |
|---|---|
| Nominal Power Handling | 12 W |
| Max Power Handling | 15 W |
| SPL Level | 83 dB |
| Frequency Range | 20 Hz to 20 kHz |
Share the model, size or application you are considering. Our team will help with your speaker requirements.
